cTDP – Easy & flexible reduction of CPU TDP
Supporting Intel® AMT 12.0 / vPRO
Dual Channel LVDS & eDP
M.2 SSD & Mini-PCIe Socket
onboard ATX PSU or Single 12 V Supply
| Processor | Intel® Core™ i9/i7/i5/i3 (8th/9th Gen) processor series Intel® Pentium®/Intel® Celeron® processor series Socket LGA1151 – up to 95 W TDP |
| Chipset Memory | Intel® Q370 Chipset DDR4-2666, Dual Channel 2 SO DIMM sockets, up to 64 GByte memory |
| Graphics | Intel® UHD Graphics, DX12 |
| Audio Codec | Realtek ALC671 |
| Audio Interface | 5.1 - channel, High Definition Audio Codec |
| Ethernet | Intel i219LM & i210AT with 10/100/1000 MBit/s, AMT 12.0 / vPro Support Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support |
| USB | 4x USB 2.0, 2x USB 2.0 (by header), 2x USB 3.1 Gen1, 2x USB 3.1 Gen1 (by header), 2x USB 3.1 Gen2, 1x USB 3.1 Gen2 stick socket |
| Serial Port | 1x RS232, 1x RS232/422/485 (by header) |
| Other I/Os | GPIO (by header) |
| SATA | 4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10, 1x M.2 PCIe (2242/2260/2280), 1x Mini PCIe (halfsize/fullsize) |
| PCIe/PCI Slots | PCIe x16: 1x Gen3, Support for lane split (8+8 or 8+4+4) |
| Connector | ATX Power Supply |
| Input Voltage | ATX (Multirail) or Single 12 V |
| BIOS | BIOS AMI Aptio 5.x (UEFI) BIOSmodified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5. Boot support for M.2 SSD (AHCI / NVME) BIOS integrated HW Diagnostic Tool, Watchdog Support No legacy OS support, no MBR installation (UEFI only due to Intel restrictions) |
| Watchdog | 3-Level Watchdog (BIOS/BIOS Post/OW HW) |
| Real Time Clock | Integrated |
| TPM | TPM V2.0 (Infineon; TCG compliant) |
| FP HEADER | 1x Header for Reset button, HDD LED & Internal Speaker, Power button, Power LED |
| Security | Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial- / USB- Port Access Protection, Write Protection for Flash BIOS, EraseDisk (BIOS Feature), TPM V2.0 (Infineon; TCG compliant) |
| Fan | 2x PWM fan (CPU/System) |
| OS Support | MS Windows 10 Linux-64 |
| Dimensions (L x W) | Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm) |
| EMC & Safety | FCC-B verified cTÜVus acc. IEC62368-1 (upon request), CE Class B |
| Source | Voltage | Min. PS Load | Max. Voltage Tolerance | Motherboard Capacitive Load | Motherboard Max. Current |
| Main Power Supply (Multi Rail) | + 12 V - 12 V + 5 V + 3.3 V + 5 Vaux |
0.05 A 0 A 0.2 A 0 A 0 A |
± 5% ± 5% ± 5% + 5%/-3% |
1.300 µF 900 µF 350 µF 330 µF |
10 A / 18 A** Not used 4.5 A 0.5 A 2.5 A |
| Single 12 V DC | + 12 V | 0 A | ± 5% | 1.300 µF | 11 A / 19 A*** |
i) ATX PSU (multi rail) or single 12 V DC Supply
ii) Processor 95 W TDP: Max. Cont. Current = 10 A; max. Surge Current = 16 A (< 100 sec) / 18 A (< 10 ms)
Processor 65 W TDP: Max. Cont. Current = 7 A; max. Surge Current = 14 A (< 100 sec) / 18 A (< 10 ms)
Processor 35 W TDP: Max. Cont. Current = 4 A; max. Surge Current = 10 A (< 100 sec) / 14 A (< 10 ms)
iii) Max. load for single 12 V DC supply: approx. +1 A compared to multi rail supply
| Features | Chipset Board Size VGA / DVI-I / DVI-D / DP V1.2 / 2nd DP V1.2 / LVDS / eDPBuzzer / int. Speaker Support / 5.1 Multichannel Audio Dual LAN Gbit / 100 Mbit / 10 Mbit / WoL / LAN Boot / Teaming iAMT 12.0 vPro / Intel Standard Manageability / DASH V1.1 SATA / SATA-RAID / eSATA-Support / mSATA / M.2 SSD (PCIe) USB 2.0 / USB 3.1 (gen1) / USB 3.1 (gen2) FAN monitored & controlled PSU / CPU / AUX1 / AUX2 TEMP monitored CPU / onboard sensors / external sensor |
iQ370 Mini-ITX - / - / + / + / + / + / + + / + / + + / + / + / + / + / + + / + / - + / + / + / - / + + / + / + - / + / + / - + / + / - |
| Special Features | Silent Fan / System Guard / cTDP Recovery BIOS / Desk Update / Multi Boot HDD Password / EraseDisk / TPM V2.0 BIOS POST- / BIOS Boot- / OS HW Watchdog Logo Boot Option High Efficiency Core Voltage Regulator Design Operating Mode 24-7 / 8-5 (hrs per day - days per week) Motherboard operating temperature range (chassis inside)* |
+ / + / + + / + / + + / + / + + / + / + + + + / - 0 °C – 60 °C |
| Internal connectors | SO DIMM Sockets (DDR4 2666) PCI Express® x16 (Gen3) / Support for lane split (8+8 or 8+4+4) mSATA / Mini PCI Express® Slot (halfsize / fullsize, incl.USB 2.0) SATA-600 / M.2 SSD 2280 (supports 2280/2260/2242, Key-M, PCIe/NVME) S/PDIF (digital Audio) OUT / IN Front Panel Audio (9-Pin, HD Audio) USB 2.0 / USB 3.1 (Gen1) / USB 3.1 (Gen2) / USB 3.1 (Gen2) Stick** Serial (COM2, RS-232 / RS-422 / RS-485) / Parallel Port Connector LVDS / LVDS Backlight (PWM controlled) / Embedded DisplayPort FAN PSU / CPU / AUX1 / AUX2 Intrusion (Case Open) / GPIO (8Bit) / SMBus (Case Temp.) Front Panel (Power Switch, Reset Switch, LEDs, Intel 10 pin compatible) ATX Power Supply (24 pin + 4 pin) / single 12 V PSU*** |
2 1 / + - / 1 4 / 1 1 / 0 1 1 / 1 / - / 1 1 / - 1 / 1 / 1 0 / 1 / 1 / 0 1 / 1 / - 1 1 / 1 |

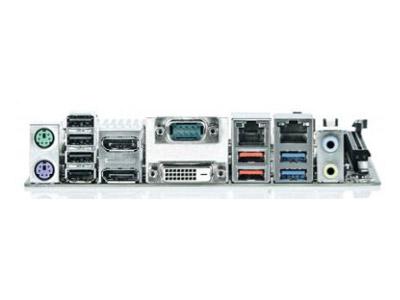

| External connectors | VGA Sub D / DVI-I / DVI-D / DisplayPort V1.2 Audio Mic. In / Line in / Line out (or driver configuration) LAN (RJ-45) PS/2 Mouse / Keyboard USB 2.0 / USB 3.1 Gen1 / USB 3.1 Gen2 Serial (COM1, RS232) |
- / - / 1 / 2 - / 1 / 1 2 1 / 1 4 / 2 / 2 1 |
